Mini Broom

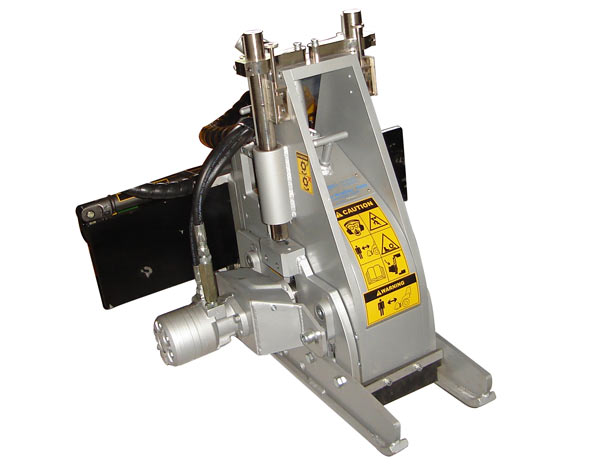

Mini Concrete Profiler
The robust design of the Mini Schibeci Power Profiler allows the toughest concrete removal process to be efficient, precise and highly productive in the toughest conditions.
Features:
- Removes upto 1 inch thick concrete or
epoxy mortars
- Prepares concrete for various applied
finishes
- Removes ceramic tiles including underlayment in one pass
- Independent Level Control
- Floating Turntable
- Dust Suppression System
- Material Extraction System
- Interchangeable wear strips on skid plates
- Quick change tooling system
- Long lasting carbide tooling system
Ideal use:
Bulk removal of concrete, ceramic tiles and epoxy mortar toppings.
Suit Machine Types: Mini Machines and Small Skids Steers
| Specifications | Mini Concrete Power Profiler |
|---|---|
| Rec Flow Range (LPM) | 40 + |
| Max Pressure (BAR) | 206 |
| Profiling Width | 150mm |
| Profiling Depth | 38mm |
| Number of Cutting Tools | 36 |

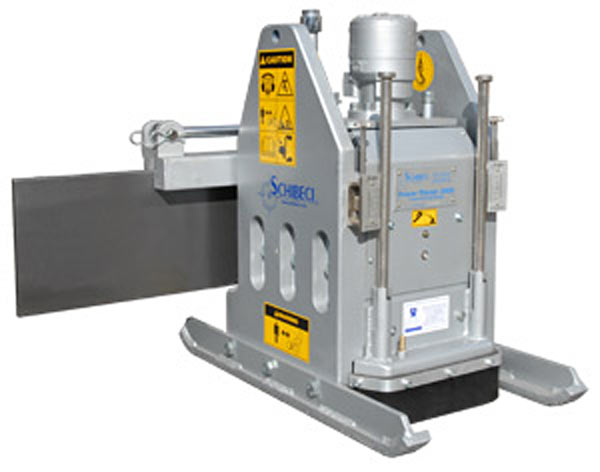

Mini Power Planer
The Mini Schibeci Power Planer is an aggressive single head grinder that is able to utalise durable Tungstan Carbide Cutting Teeth as well as Diamonds. The advantage of this is high penetration, high production, low wear rates and low consumable costs.
Features:
- Removes up to 1/2 inch thick concrete surfaces
- Exposes aggregate in concrete
- Flattens uneven concrete floor precisely
- Smoothes out rough concrete surfaces
- Removes all coatings, overlayments, mortars from concrete floors
- Removes glues and mastics from concrete floors
- Wet and/or dry diamond grinding
- Independent Level control on left and right hand side of cut
- Direct Drive Grinding Head
- Floating Turn Table
- Fully Enclosed Cutter Box
- Dust Suppression System
- Dust Extraction Port
- Quick Change Tooling & Diamond Systems
- Long lasting carbide tooling system
- Diamond Grits from 14/16 to 400
Ideal use:
Bulk removal of concrete, ceramic tiles and epoxy mortar toppings.
Suit Machine Types: Mini Machines and Small Skids Steers
| Specifications | Mini Power Planer |
|---|---|
| Hydraulic HorsePower required | 19 - 150kW |
| Grinding / Planing Width | 300mm |
| Grinding / Planing Depth | up to 5mm per pass |
| Rec Flow (LPM) | 40+ |
| Max Pressure (BAR) | 206 can be suited to 350BAR |
| Number of Cutting Tools | 3 - 12 - depending on desired result |
