Mini Trencher

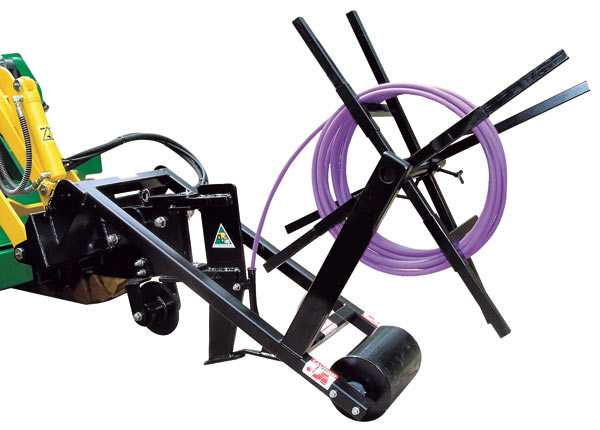

Mini Irragation Pipe Layer
The Digga Mini Irragation pipe layer is ideal for trenchless laying of irrigation pipes with adjustable hose reel and turf cutter.
Features:
- Adjustable Turf Cutter
- Adjustable hose reel
- Ideal for trenchless laying of irragation pipes
- 150mm digging depth
Suit Machine Types: Mini Machines and Small Skids Steers
| Specifications | Mini Irragation Pipe Layer - OK27004 |
|---|---|
| A Width (overall) | 613mm |
| B Length (overall) | 1400mm |
| C Height (overall) | 1446mm |
| Rec Max Flow (LPM) | up to 45 |
| Rec Max Pressure (BAR) | 220 |
| Dig Depth | 150mm |
| Weight | 200kgs |

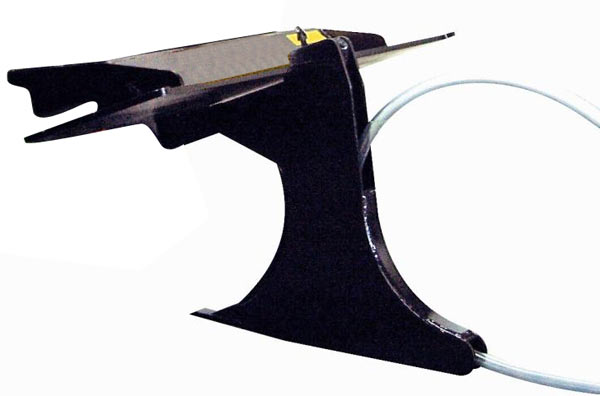

Mini Poly Pipe Layer
Features:
- Ideal for laying poly pipe or low voltage cable just below the ground surface
- Wheel blade cuts neatly through turf with plough head leaving neat channel
- Pipe or cable is fed directly to ground via hollow plug with little ground disturbance
- Requires Mini Multi Tool Bar Attachment
Suit Machine Types: Mini Machines and Small Skids Steers
| Specifications | Mini Poly Pipe Layer - OK50080 |
|---|---|
| A Width (overall) | 44mm |
| B Length (overall) | 568mm |
| Pipe Diameter | 12mm to 20mm |
| Weight (kgs) | 15kgs |
View Our Mini Trenching Attachment Range
