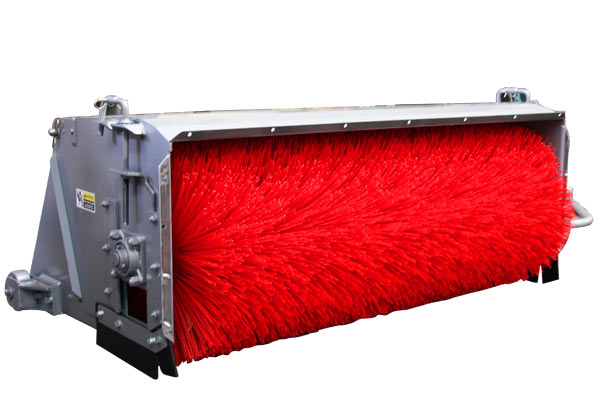

Bucket Brooms

Suit Machine Types: Skid steer loaders, front end loaders and telehandlers.

Features:

Replaceable machine pickups for multiple machine use.
Easy to use built-in brush adjustment handles.
Replaceable cutting edge on bucket.
24” replaceable 1 piece poly brush.

Ideal Use: Sweeps and collects all kinds of debris in
factory car parks, road construction, stock yards & more.

Full Range Sizes Available: 1600mm, 1700mm, 1800mm, 2000mm, 2500mm, 3000mm

Cleana Bucket Broom Specifications	BR-000410 24 X 1600	BR-000445 24 X 1600	BR-000414 24 X 1700	BR-000454 24 X 1700	BR-000416 24 X 1800	BR-000446 24 X 1800
	STD	HIGH FLOW	STD	HIGH FLOW	STD	HIGH FLOW
A Height (overall)	699mm	699mm	699mm	699mm	699mm	699mm
B Depth (overall)	1262mm	1262mm	1262mm	1262mm	1262mm	1262mm
C Width (overall)	1870mm	2010mm	1971mm	2110mm	2071mm	2210mm
D Motor Width	174mm	309mm	174mm	309mm	174mm	309mm
Max Flow (LPM)	30-75	75-230	30-75	75-230	30-75	75-230
Max Pressure (BAR)	205	240	205	240	205	240
Weight	397kgs	422kgs	413kgs	438kgs	429kgs	454kgs

Cleana Bucket Broom Specifications	BR-000360 24 X 2000	BR-000465 24 X 2000	BR-000420 24 X 2500	BR-000475 24 X 2500	BR-000010 24 X 3000
	STD	HIGH FLOW	STD	HIGH FLOW	HIGH FLOW
A Height (overall)	699mm	699mm	699mm	699mm	699mm
B Depth (overall)	1262mm	1262mm	1262mm	1262mm	1262mm
C Width (overall)	2270mm	2410mm	2710mm	2910mm	3407mm
D Motor Width	174mm	309mm	174mm	309mm	309mm
Max Flow (LPM)	30-75	75-230	30-75	75-230	75-230
Max Pressure (BAR)	205	240	205	240	240
Weight	461kgs	486kgs	541kgs	566kgs	621kgs

Digga Bucket Broom
