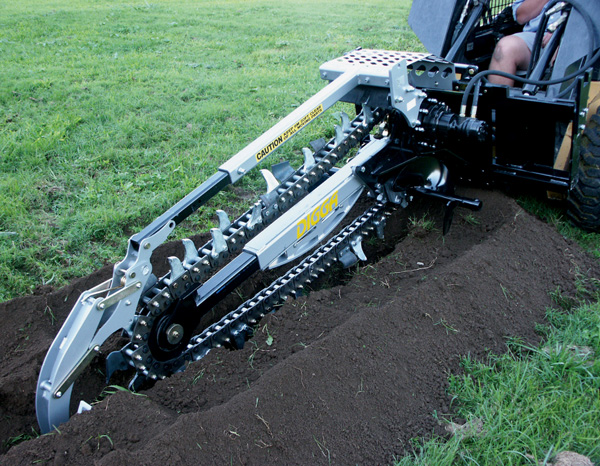

Hydrive trencher

Suit Machine Types:

Tele-Handlers, Truck Cranes, Front End Loaders, Wheeled Loaders, Back Hoes, Skid Steer Loaders. Up to 3.5 Tonne

The hydrive range of trenchers are designed for the serious trenching contractor. Hydrive is ideal for machines up to 3.5 Tonne Fitted with a compact, powerful Digga planetary drive system & twin spoil removal augers. The unique positioning of the drive system allows for more usable horse power providing greater efficiency. Twin auger spoil removal deposits finely crumbled spoil to both sides of the trench for effective compaction back into the trench. Frame can be side shifted for digging close to permanent structures ie buildings, trees.

Hydrive is ideal for up to 900mm & 1200mm digging depth and 300mm digging width. Fitted with a 1.654” chain and 4 selections of premium cutting systems to suit your individual needs.

Order Code	Description	Max Flow (LPM)	Max Pressure (BAR)
HDT-28-900-CR	GF28 - 900 DIG - NO CHAIN - WITH CRUMBER	50-75	240
HDT-28-1200-CR	GF28 - 1200 DIG - NO CHAIN - WITH CRUMBER	50-80	240

Xtra Drive to suit Digga Hydrive

Xtra Drive is a attached to the motor to keep its speed nearly constant. Xtra drive stores energy to provide more power when needed. During Trenching debris within the ground can effect the driving forces from the hydraulics become momentarily less than is necessary to drive the trencher causing it to stall. The Extra Drives stored inertia keeps the speed from decreasing quickly. It is ideally used where the forces driving the Machine are not constant such as on lower flow machinery

Order Code	Description
T-XTRA	XTRA DRIVE

3pt Linkage Frame to suit Hydrive

The 3pt Linkage Frame allows the Hydrive Trencher to be connected to a tractor with a design incoporating a hydraulic accumulator, acting as a shock absorber whilst trenching. It allows the trencher to rise if the tractor is running too fast through hard ground, preventing any strain or damage to the attachment and/or tractor. The Adjustable frame allows for 5 positions to dig at different depths while allowing for varying 3pt linkage heights.

The 3pt Linkage Frame and Hydraulics to suit the Hydrive Trencher requires a hydrostatic trencher with a minimum flow of 50LPM and a maximum of 3500psi working pressure. It will also require a minimum of 2 auxliairy lines/remotes to operate.

Order Code	Description
RD-000158	AGRICULTURAL TRENCHER FRAME AND HYDRAULICS SYSTEM ONLY

UNIVERSAL CRUMBER

This spring loaded crumber is available on all trenchers with varying plates to suit trench widths.

The crumbers have springs to give constant down pressure on the bottom of trench to scoop all spoil missed in the initial cut of the chain, throwing it back onto the chain to be carried back to the surface.

Please specify when selling or commissioning the trencher that the crumber must be in the fold back position until the trench has started, then drop the crumber forward and pin off to continue trenching.

If the crumber is in the trenching position from the top of the ground the spring in the trencher will over extend as it is going down the first part of the trench resulting in possible crumber failure and damage.

	Order Code	Description
TR-000600	CRUMBER BAR UNIVERSAL

Order Code

Description

TR-000600

CRUMBER BAR UNIVERSAL

CHAINS to suit Hydrive Trencher

bigfoot chain

Hydrive Trencher 900 MM DIG

EARTH

Cup tooth on every second station of the chain. Only for soft clean grounds with no floater or tree roots.

Order Code	Chain Size	Description
TCH1-36-100-E	1.654IN	900 DIG (36STN) - 100MM CUT EARTH
TCH1-36-150-E	1.654IN	900 DIG (36STN) - 150MM CUT EARTH
TCH1-36-200-E	1.654IN	900 DIG (36STN) - 200MM CUT EARTH
TCH1-36-250-E	1.654IN	900 DIG (36STN) - 250MM CUT EARTH
TCH1-36-300-E	1.654IN	900 DIG (36STN) - 300MM CUT EARTH

FROST

Cup tooth on every station of the chain. Better chain for clean ground with some tree root as this gives a chain saw effect and can saw through small roots. Will still buck and jump if in shale/rocky ground.

Order Code	Chain Size	Description
TCH1-36-100-F	1.654IN	900 DIG (36STN) - 100MM CUT FROST
TCH1-36-150-F	1.654IN	900 DIG (36STN) - 150MM CUT FROST
TCH1-36-200-F	1.654IN	900 DIG (36STN) - 200MM CUT FROST
TCH1-36-250-F	1.654IN	900 DIG (36STN) - 250MM CUT FROST
TCH1-36-300-F	1.654IN	900 DIG (36STN) - 300MM CUT FROST

COMBO

Combination of 70% Diggatac tooth, 30% Cup tooth. This combination gives an all round performance. Able to cut through soil, tree root, shale and rocky grounds. The combination allows for a cleaner trench in soil with the cup teeth bringing the soil to the surface.

Order Code	Chain Size	Description
TCH1-36-100-C	1.654IN	900 DIG (36STN) - 100MM CUT COMBO
TCH1-36-150-C	1.654IN	900 DIG (36STN) - 150MM CUT COMBO
TCH1-36-200-C	1.654IN	900 DIG (36STN) - 200MM CUT COMBO
TCH1-36-250-C	1.654IN	900 DIG (36STN) - 250MM CUT COMBO
TCH1-36-300-C	1.654IN	900 DIG (36STN) - 300MM CUT COMBO

DIGGATAC

The most advanced Trencher cutting system in the World today. This chain will cut through all ground and is able to grind through the hardest of shale. Diggatac provides extended tooth life and reduced vibration particularly when starting in tough conditions.

Order Code	Chain Size	Description
TCH1-36-100-D	1.654IN	900 DIG (36STN) - 100MM CUT DIGGATAC
TCH1-36-150-D	1.654IN	900 DIG (36STN) - 150MM CUT DIGGATAC
TCH1-36-200-D	1.654IN	900 DIG (36STN) - 200MM CUT DIGGATAC
TCH1-36-250-D	1.654IN	900 DIG (36STN) - 250MM CUT DIGGATAC
TCH1-36-300-D	1.654IN	900 DIG (36STN) - 300MM CUT DIGGATAC

Hydrive Trencher 1200 MM DIG

EARTH

Cup tooth on every second station of the chain. Only for soft clean grounds with no floater or tree roots.

Order Code	Chain Size	Description
TCH1-42-100-E	1.654IN	900 DIG (36STN) - 100MM CUT EARTH
TCH1-42-150-E	1.654IN	900 DIG (36STN) - 150MM CUT EARTH
TCH1-42-200-E	1.654IN	900 DIG (36STN) - 200MM CUT EARTH
TCH1-42-250-E	1.654IN	900 DIG (36STN) - 250MM CUT EARTH
TCH1-42-300-E	1.654IN	900 DIG (36STN) - 300MM CUT EARTH

FROST

Order Code	Chain Size	Description
TCH1-42-100-F	1.654IN	900 DIG (42STN) - 100MM CUT FROST
TCH1-42-150-F	1.654IN	900 DIG (42STN) - 150MM CUT FROST
TCH1-42-200-F	1.654IN	900 DIG (42STN) - 200MM CUT FROST
TCH1-42-250-F	1.654IN	900 DIG (42STN) - 250MM CUT FROST
TCH1-42-300-F	1.654IN	900 DIG (42STN) - 300MM CUT FROST

COMBO

Order Code	Chain Size	Description
TCH1-42-100-C	1.654IN	900 DIG (42STN) - 100MM CUT COMBO
TCH1-42-150-C	1.654IN	900 DIG (42STN) - 150MM CUT COMBO
TCH1-42-200-C	1.654IN	900 DIG (42STN) - 200MM CUT COMBO
TCH1-42-250-C	1.654IN	900 DIG (42STN) - 250MM CUT COMBO
TCH1-42-300-C	1.654IN	900 DIG (42STN) - 300MM CUT COMBO

DIGGATAC

Order Code	Chain Size	Description
TCH1-42-100-D	1.654IN	900 DIG (42STN) - 100MM CUT DIGGATAC
TCH1-42-150-D	1.654IN	900 DIG (42STN) - 150MM CUT DIGGATAC
TCH1-42-200-D	1.654IN	900 DIG (42STN) - 200MM CUT DIGGATAC
TCH1-42-250-D	1.654IN	900 DIG (42STN) - 250MM CUT DIGGATAC
TCH1-42-300-D	1.654IN	900 DIG (42STN) - 300MM CUT DIGGATAC

SPARE PARTS

SCRAPER SHOES

Order Code	Description
SS-000001	SCRAPER SHOE 6 IN - 140W X 370L X 8MM
SS-000002	SCRAPER SHOE 8 IN - 190W X 370L X 8MM
SS-000003	SCRAPER SHOE 10 IN - 240W X 370L X 8MM
SS-000004	SCRAPER SHOE 12 IN - 290W X 370L X 8MM
SS-000005	SCRAPER SHOE 14 IN - 340W X 370L X 8MM

TEETH

Order Code	Description
W-000081	CUP TOOTH - 1.654 IN - LEFT HAND (CH1)
W-000083	CUP TOOTH - 1.654 IN - RIGHT HAND (CH2)
TDC	TOOTH - 1.654 IN CENTRE CUTTER DIGGATAC
TDL	TOOTH - 1.654 IN LEFT HAND CUTTER DIGGATAC
TDR	TOOTH - 1.654 IN RIGHT HAND CUTTER DIGGATAC

DRIVE SPROCKETS

Order Code	Description
TR-000035	DRIVE SPROCKET - SUIT 1.5/8 IN PITCH CHAIN - 12 TOOTH

NOSE ROLLER BEARING

Order Code	Description
BE-000016	BEARING - NOSE ROLLER W208 - PP5 - 1.5/8 IN
TR-000870	NOSE ROLLER KIT - 1.5/8 IN - COMPLETE WITH BEARING & CIRCLIP
BE-000018	(T2090) BEARING TO SUIT AUGER SHAFT- 1.5/8 IN
BE-000006	(T2095) HOUSING TO SUIT AUGER SHAFT- 1.5/8 IN
