Mini Tilt Dozer Blade
The Digga Mini Angle Dozer Blade is a versatile attachment for dozing, leveling ground and general earthmoving works.
Features:
- 46” Width (117cm)
- 30° left and right angle.
- Replaceable wear edge.
- 11° left and right tilt on Angle/Tilt model only.
ML-000381: suit dual remote machines
ML-000382: suit single remote machines
(complete with Manual Hydraulic Diverter Valve)
Ideal use:
Dozing, grading, levelling of material in earthworks, landscaping, roadworks and more.
Suit Machine Types:
Mini Machines and Mini Loader
| Specifications |  |
|
|---|---|---|
| Height | 431mm | |
| Width | 1193mm | |
| Length | 558mm | |
| Angle - Left & Right | 30° | |
| Blade Width at Maximum Angle | 1016mm | |
| Width from Centreline to Inside Edge @ Maximum Angle | 584mm | |
| Width from Centreline to Inside Edge @ Maximum Angle | 584mm | |
| Weight (kgs) | 116kgs |

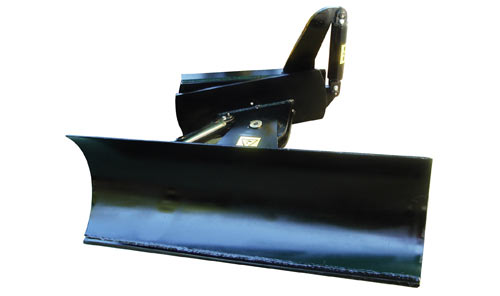

Mini Hydraulic Dozer Blade
2 Models available: Hydraulic Angle Blade and 6 Way Dozer Blade
Features:- Fingertip hydraulic control side shift
- 6 Way Tilts from left to right
- Optional Yard Broom Attachment also available
Ideal use:
Ideal for backfilling and site clean up.
Suit Machine Types: Mini Machines and Small Skids Steers
| Specifications | Hydraulic Angle Blade - OK85002 |
6 way Dozer Blade OK85006 |
|---|---|---|
| A Width (overall) | 395mm | 395mm |
| B Length (overall) | 1200mm | 1200mm |
| C Height (overall) | 722mm | 722mm |
| Weight | 75kgs | 86kgs |
