Spreada Bar

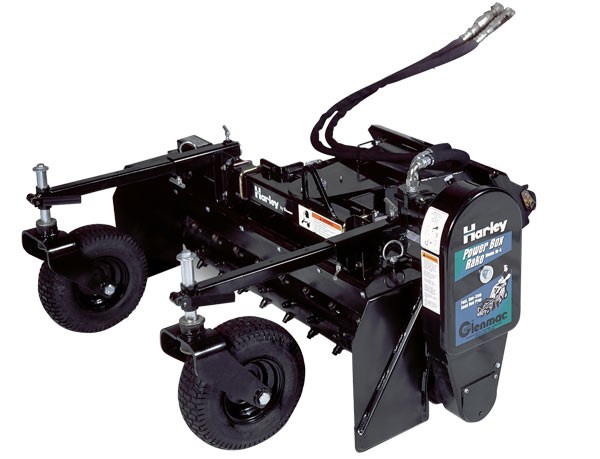

Harley Rakes built for the more powerful machines available today, the Harley Rakes offers greater strength with the same non-bulky manueverability that's easy on your job site and machine.

Features:

Pure Carbide Teeth shaped for longer life and the best possible seedbed.
Roll-back barrier above the the roller allows you to quickly react to soil moisture conditions, raising the barrier allows for larger material and faster soil drying in muddy sites.
Dual independently adjustable gauge wheels for skim passes for over-seeding or adjust to cut drainage grades.
Quick and easy removable end plates for windrowing and reverse box raking.... no bolts just pull the pins.

Ideal Use:

The Harley Rake is more of a finessing tool, its ideal uses are Leveling, Grading, Seedbed Preparation, Sloping, Site Preparation, Lawncare, Golf, Wineries, Paving and contractors.

Video:

Video of the skid steer models is available here

Specifications	M4F	M4M	M4H
Machine	Mini Machines	Mini Machines	Mini Machines / Small Skid Steers
Weight (Kgs)	199	220	231
Length (Overall)	1295	1295	1295
Width (Overall)	1473	1473	1473
Racking Width (Full Angle)	NA	1143	1143
Angle Roll	NA	20	20
Min Rec Flow (LPM)	30	30	30
HP Range	NA	NA	NA
Hitch	Standard	Standard	Standard

View Our Standard Harley Rake Range

View Our 3pt Linkage Harley Rake Range
