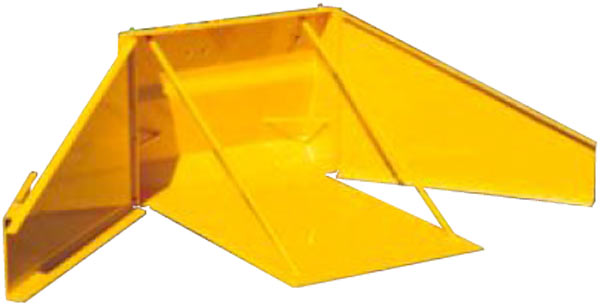

Mini Standard Bucket
Australian Designed and manufactured using only the highest quality components and materials.
Features:
- Individually controlled hydraulic wings easily reach under feed bins and inaccessible places.
- Light weight and standard models available
We also build a light weigh Ag Bucket for mini machines - Click Here
| Specifications | 1060mm (41") Wide | 1060mm (41") Wide |
|---|---|---|
| Wing Opening (both sides) | 90 degrees | 90 degrees |
| A Width with sides closed (overall) | 1050mm | 1060mm |
| B Height | 680mm | 746mm |
| C Length | 900mm | 1029mm |
| Weight | 114kgs | 130kgs |
| Volume m3 | 0.22 | 0.25 |
