Digga Ram Drills – Digga Ramdrill, Ramdrill PHD & Ramdrill PHD XD Attachments

Ramdrill PHD The safest most powerful planetary drive attachment for tractors on the market today. Eliminates the need for PTO shaft drive.
Hydraulic ram provides maximum down pressure for the drill utilising the full weight of the machine.

Features:

Quality Digga Planetary Drive
Requires two sets of remotes
Full power in forward and reverse
Hydraulic Down Pressure (up and down)
Extra Heavy Duty Frame
Adjustable stabilizer legs for easy fitment and storage after use
Available in 50hp and 75hp

Ram Drill Drawing

Specifications	RD-000330 RAMDRILL PHD 75HP	RD-000340 RAMDRILL PHD HF 75HP	RD-000350 RAMDRILL PHD XD 75HP +
A Length (overall)	2211mm	2211mm	1995mm
B Height (overall)	1114mm	1114mm	1035mm
C Width (overall)	644mm	644mm	805mm
D Boom- Fully Extended Height	1632mm	1632mm	1560mm
E Maximum Digging Depth	1442mm	1442mm	1100mm
Weight	149kgs	149kgs

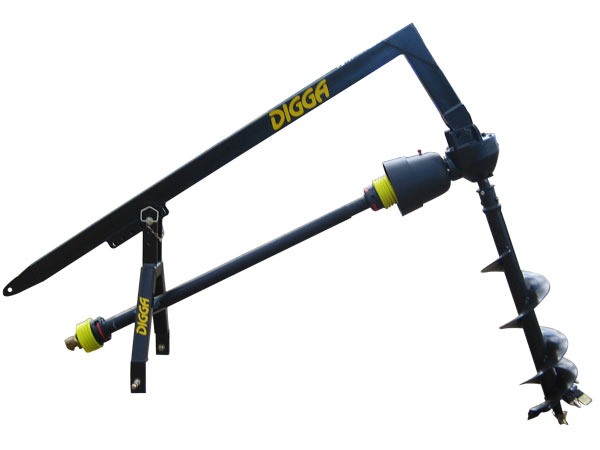

Ramdrill The original PTO driven, down pressure drill with heavy duty clutch.
Tractor driven.
Available in models from 50hp up to 75hp.
Only requires one set of remotes.

Standard 3Pt Linkage
Heavy duty, yet economical.

Ram Drill Drawing

Specifications	RD-000093 RAMDRILL 50HP	RD-000094 RAMDRILL 75HP
A Length (overall)	1712mm	1712mm
B Height (overall)	1662mm	1662mm
C Width (overall)	666mm	666mm
D Boom- Fully Extended Height	1354mm	1354mm
E Maximum Digging Depth	1708mm	1708mm

Specifications	TP-000015 3PL - PTO DRIVEN 25HP	TP-000016 3PL - PTO DRIVEN 50HP	TP-000017 3PL - PTO DRIVEN 75HP
A Length (overall)	2318mm	2318mm	2318mm
B Height (overall)	897mm	897mm	897mm
C Width (overall)	671mm	671mm	671mm
