Teeth fighting through rock

Wearparts

Digga Wearparts



TS
TS-C
TS-1
TS-2
TS-3
TS-C-1
TS-C-2
TS-C-3
PS
PM
PS-1
PS-2
PS-3
PM-1
PM-2
PM-3
TM
TM-C
TM-1
TM-2
TM-3
TM-C-1                TM-C-3
TM
TM-C

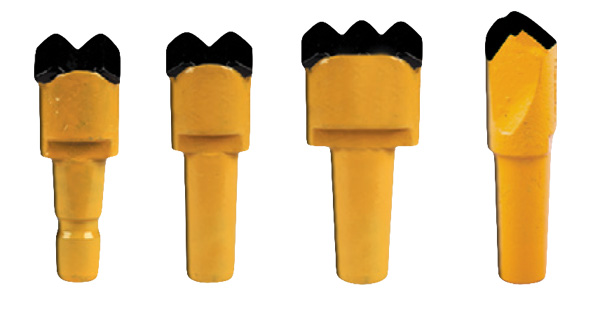

TTC-3         TTD-3        TTL-3         TTS-3
PM_SQ-1        PM_SQ-1       PM_HX-3        PH-3
1 Earth Standard durable and cost effective, For Light to moderate ground conditions
2 TC Flat tungsten carbide braised to your wearparts ensures longer life
3 MFT For difficult medium to Heavy solid ground conditions, compacted soils, heavy clay, asphalt, concrete, frozen ground, fracturable and solid rock.

Teeth
A full range of Auger Teeth are available to suit your individual requirements. Digga Teeth are fitted with the world first PADLOC® - Advanced tooth locking system.

Code Description Weight Kgs

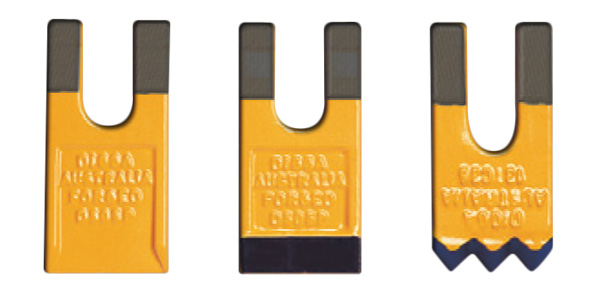

TS-1 Tooth Standard - Earth .19
TS-2 Tooth Standard - TC .20
TS-3 Tooth Standard - MFT .20

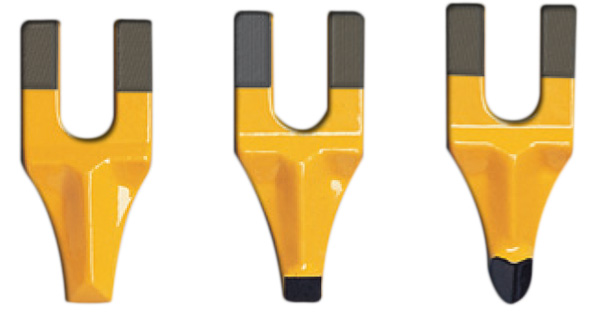

TS-C-1 Tooth Standard - Chisel - Earth .20
TS-C-2 Tooth Standard - Chisel - TC .19
TS-C-3 Tooth Standard - Chisel - TC .20

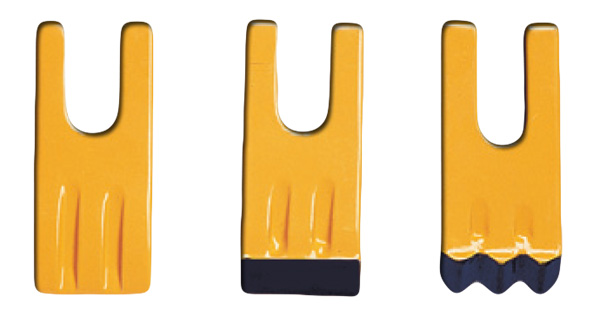

TM-1 Tooth Medium - Earth .34
TM-2 Tooth Medium -TC .31
TM-3 Tooth Medium - MFT .31

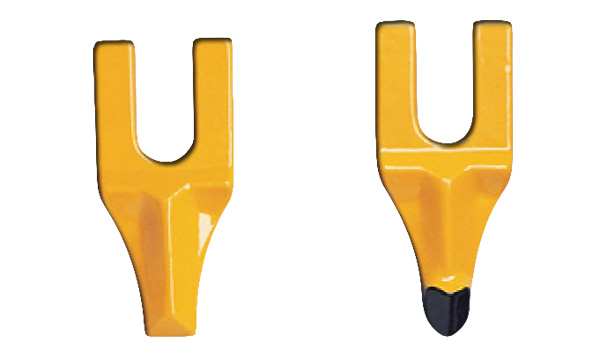

TM-C-1 Tooth Medium Chisel - Earth .29
TM-C-3 Tooth Medium Chisel - MFT .30
TTC-3 Tooth Taper C Style - MFT .20
TTD-3 Tooth Taper D Style - MFT .21
TTL-3 Tooth Taper Large - MFT .50
TTS-3 Tooth Taper Single Tip - MFT .19



Pilots
Digga provide a full range of Heavy Duty cast steel Pilots to suit your individual requirements.

Code Description Weight Kgs

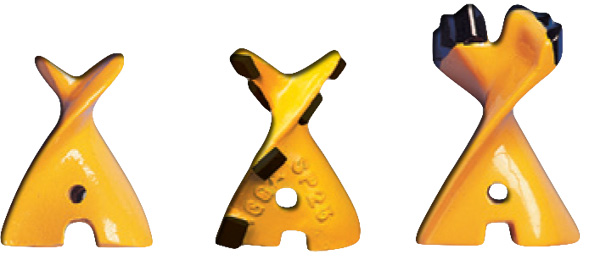

PS-1 Pilot Standard - Earth .31
PS-2 Pilot Standard - TC .32
PS-3 Pilot Standard - MFT .60

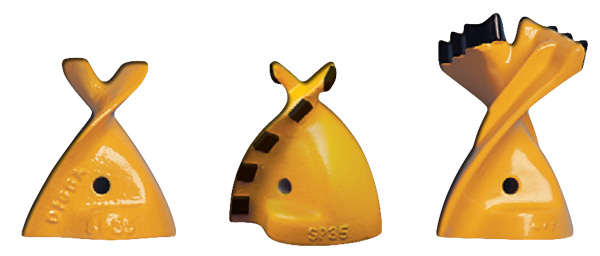

PM-1 Pilot Medium - Earth .99
PM-2 Pilot Medium - TC 1.0
PM-3 Pilot Medium - MFT 1.29
PH-3 Pilot Heavy - MFT 1.24

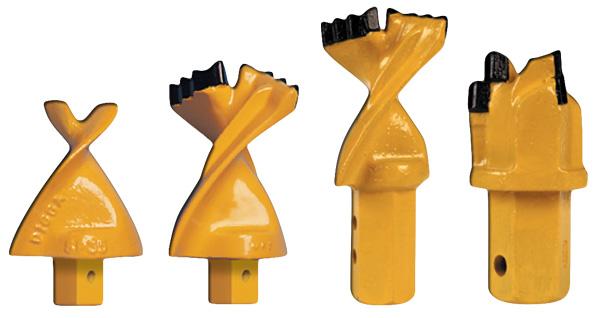

PM-SQ-1 Pilot Medium - Square - Earth 1.66
PM-SQ-3 Pilot Medium - Square - MFT 2.1
PM-HX-3 Pilot Medium - Hex - MFT 2.7

PadLoc heading

Diggas patented advanced quick fit tooth locking system. Easy One step process Knock in – Knock out.

Bonded friction pads are already fitted to your auger teeth to ensure your Locked in tight.
Fits most styles of pockets and wearparts.
No special tools required to fit or remove.
No more requirements for fiddly bolts, pins or rubbers.
