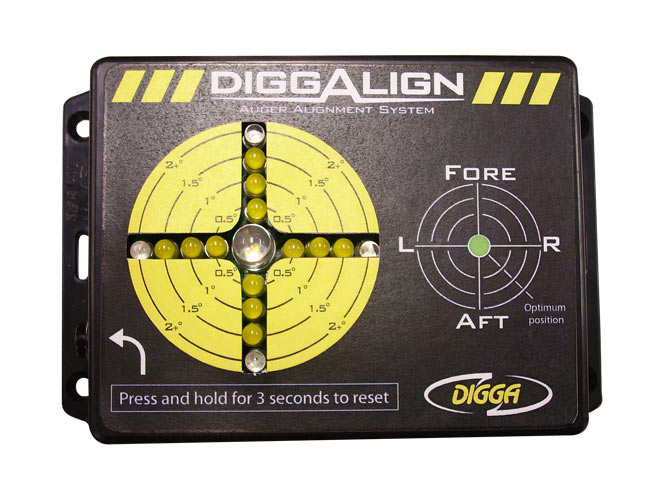

Diggalign Inclinometer

The New Diggalign inclinometer was developed for contractors where accuracy is key. Ideal for drilling, screw piling & core barrelling applications. Designed to show the operator when the top of the pylon/pile/auger is off plumb, and helps to maintain accuracy throughout the installation.

Features & Benefits

  • 2 Options available
    • Standard Definition with increments in 2°
      - Recommended for piles/augers under 4m (13ft)
    • High definition with increments in 0.5°
      - Recommended for piles/augers over 4m (13ft)
  • Suits all machinery with a variety of harness lengths
  • Can be retrofitted to existing drives
  • Increased job site efficiency
  • Can be calibrated for angles up to 20°
  • Highlights misalignment forward and aft
  • Dual supply cable with both 12V and 24V

Features & Benefits

The Diggalign Inclinometer come packed with practical features as well as cutting edge design. Hover your mouse over the features´ 'plus' symbol on the diagram below to reveal the respective benefits.

Diggalign Specifications

Specification
Weight 120 mm
Length 35 mm
Length (Overall) 93 mm
Height 146 mm
