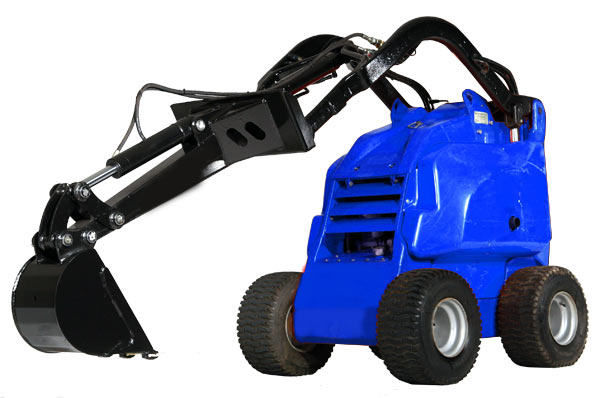

Mini Skid Hoe
Features:
- Dig trenches up to 1270mm deep.
- Unique yoke design ensure maximum opening of the cylinder providing full reach and optimizing clean out of the bucket.
- Manual side shift frame available for optional off centre digging
- Standard with 12”(300mm) bucket.
- 200mm Bucket available
Ideal use:
Digging Trenches and footings
Suit Machine Types: Mini Machines and Small Skids Steers
| Specifications | ML-000078 |
|---|---|
| Width (overall) | 635mm |
| Reach (overall) | 1295 |
| Digging Depth (with mounting plate 50mm above ground) | 1270mm |
| Digging Force (bucket cylinder) | 907kgs |
| Weight | 70kgs |

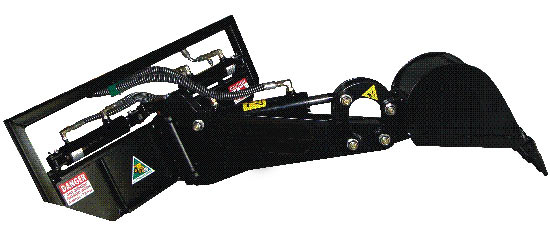

Mini Slewing Front Hoe
For easy disposal of dirt. Designed for digging in front of the loader and dispose of soil in a slewing motion
Features:
- Bucket curl feature
- Front Hoe pivots from the centre 44.3 degrees left amd right
- Optional: extra bucket sizes available
Ideal use: Digging Trenches and footings
Suit Machine Types: Mini Machines and Small Skids Steers
| Specifications | Slewing Front Hoe |
|---|---|
| A Width (overall) | 900mm |
| B Length (overall) | 1384mm |
| C Height (overall) | 400mm |
| Dig Depth | 700mm |
| Slew Width | 650mm |
| Weight | 81kgs |

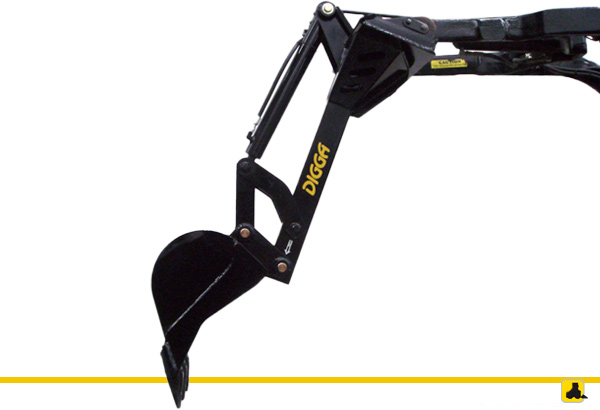

Mini Hoe
For easy disposal of dirt. Designed for digging shallow trenches.
Features:- Wide bucket range from 150mm to 600mm
- Connects directly to your loader.
- Low cost attachments
Ideal use: Shallow excavations
Suit Machine Types: Mini Machines and Small Skids Steers
| Specifications | 150mm wide | 200mm wide | 300mm wide | 400mm wide | 600mm wide |
|---|---|---|---|---|---|
| Weight | 14kgs | 16kgs | 19kgs | 23kgs | 29kgs |
| Height | 495mm | 495mm | 495mm | 495mm | 495mm |
| Width | 601mm | 601mm | 601mm | 601mm | 601mm |
| Length | 529mm | 529mm | 529mm | 529mm | 529mm |
| Max Digging Depth | 300mm | 300mm | 300mm | 300mm | 300mm |
Video:
