Digga 4 in 1 Bucket, Australian made, suit Skid Steer, Tractors, Front End Loaders and Mini Loaders 4:1 Buckets

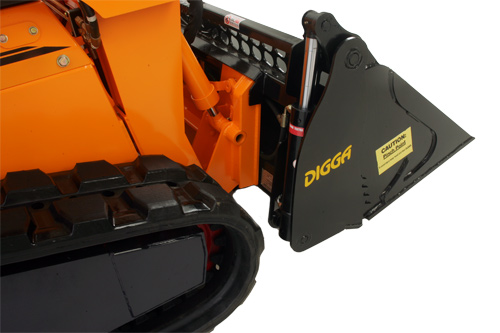

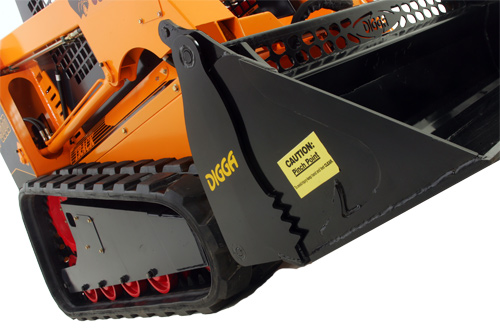

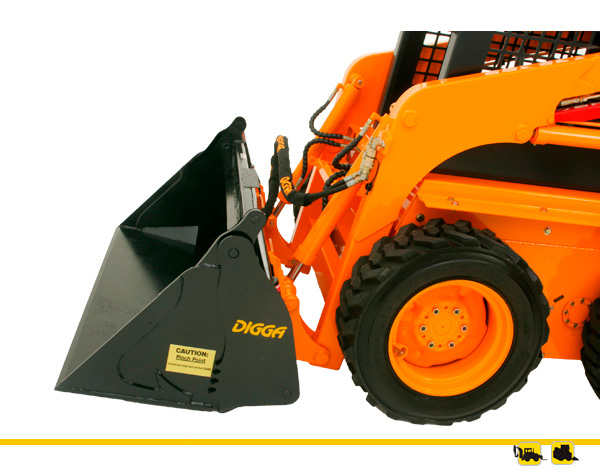

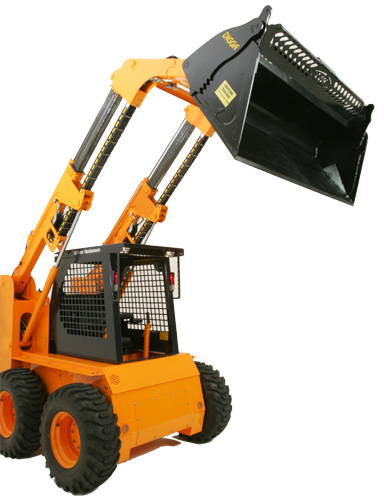

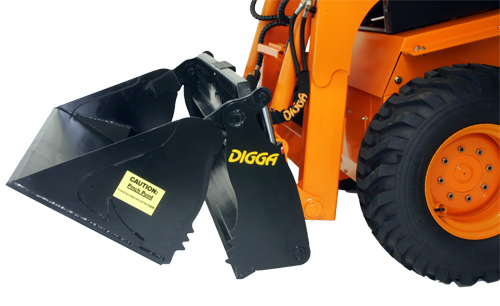

Bucket 4 in 1

Australian Designed and manufactured using only the highest quality components and materials. The Digga 4 in 1 bucket has an extensive range to suit most machines.

Features:

Grabbing teeth profiled on both front/rear overlap for greater grip of logs or other debris.
Side curved sections create greater opening bucket width of 860mm.
1 Piece heavy duty 6mm grill/hungry board with unique high visibility design, for clear vision of both front and back bucket edge.
Standard Heavy Duty 20mm Floors
Optional reversible bolt on cutting edges for all 3 edges of the bucket.
Optional chisel or tiger teeth with pin on design.
Full Range from 880mm to 2130mm
12mm and 16mm floors available on request.

Ideal use:Grading, scraping, grappling, dozing dirt or material spreading most construction work.

Suit Machine Types: Extensive range designed to suit skid steer loaders, tractors, front end loaders.

4 in 1 Bucket Specifications	1450	1550	1600	1650	1680	1727	1727HV	1800HV	1880HV	2000HV	2130HV
Bucket Cutting Width	1450	1550	1600	1650	1680	1727	1727HV	1800HV	1880HV	2000HV	2130HV
Weight (kgs)	330	345	352	360	370	380	387	410	425	432	450
M3 Volume	0.28	0.3	0.31	0.32	0.325	0.33	0.38	0.4	0.42	0.46	0.5

View Our Agricultural Bucket Range

Tilting 4 in 1 Bucket

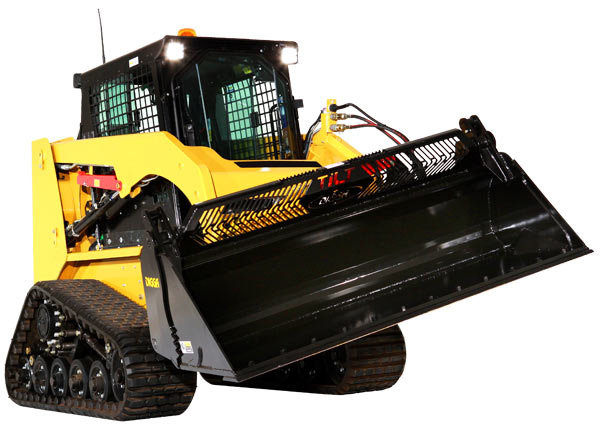

4 in 1 Tilt Bucket

Quality integrated Tilting 4 in 1 Bucket, provides the operator with full radial control of the cutting angle. Slim line tilt frame design minimizing additional weight & distance from the machine maximising the full lift capacity of the machine.

Features:

Fully enclosed, integrated valve block, with built in locking valve & STC hydraulic fittings providing compact secure protection to all hydraulics.
Hydraulic ram geometry creates exceptional tilting forces.
Hardened wear plate to increase wear life on moving parts of tilt mechanism.
Full Range available from 1450mm up to 2130mm.

Optional:

Tilt control 'Plug and Play' electric wiring kit available.

Ideal use:Grading, scraping, grappling, dozing dirt or material spreading most construction work.

Suit Machine Types: Extensive range designed to suit skid steer loaders, tractors, front end loaders.

Tilting 4 in 1 Bucket Specifications	1450	1550	1600	1650	1680	1727	1727HV	1800HV	1880HV	2000HV	2130HV
Bucket Cutting Width	1450	1550	1600	1650	1680	1727	1727HV	1800HV	1880HV	2000HV	2130HV
Weight (kgs)	515	530	537	545	555	565	572	595	610	617	635
M3 Volume	0.28	0.3	0.31	0.32	0.325	0.33	0.38	0.4	0.42	0.46	0.5
