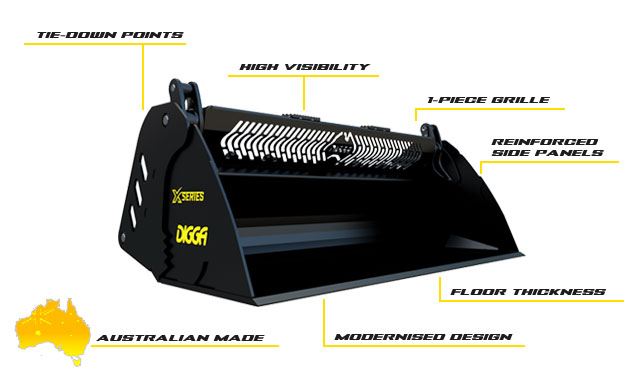

The X-Series Standard range is engineered for durability, visibility, and performance—ideal for loaders with an ROC over 678 kg. Available in both standard and high-volume models, these buckets feature a refined profile, improved hydraulic protection, and enhanced geometry for superior control and clamping force. With optional cutting edges, teeth, and valve upgrades, they’re built to suit a variety of machines and materials—delivering Australian-made reliability in every load.

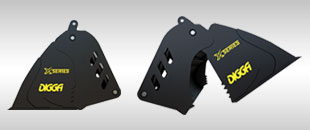

The X-Series bucket features revised geometry for improved dump and rollback angles, better machine fitment, and increased clamping range—enhancing material control and overall performance on the job.

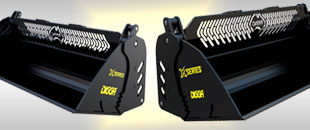

The Standard X-Series range offers both standard and high-volume models to suit different machine sizes. Choose the right capacity without compromising strength or performance.
The Standard range features larger, repositioned cylinders for greater clamping force and cleaner performance. Rear-mounted hydraulics offer better protection from debris and wear.

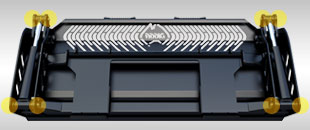

All grease points are countersunk for protection and easy access, making daily maintenance quick and hassle-free. Less time greasing, more time working.

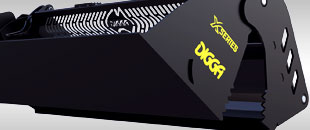

The X-Series buckets feature a stronger design with upgraded components. A reinforced clevis, robust side plates, and high-strength steel ensure long-lasting durability for demanding jobs.

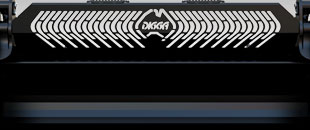

The X-Series buckets feature a robust, integrated load guard that boosts strength and durability. It offers improved visibility and enhances safety, ensuring better control and operational efficiency.

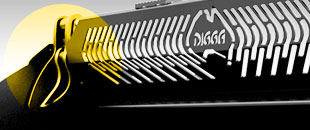

Equipped with a heavy-duty clevis designed for maximum durability, this upgrade ensures greater strength and reliability, allowing for extended service life even under the toughest conditions.
Our product quality and innovation leads the industry. 100% Australian made, designed and manufactured for Australian conditions, providing you with versatility, competitive pricing and a factory-backed warranty.
Std Volume | 1450 | 1550 | 1600 | 1650 | 1680 | 1727 |
---|---|---|---|---|---|---|
Bucket Cutting Width | 1450mm | 1550mm | 1600mm | |||
Weight | 391kg | 414kg | ||||
Floor Thickness | 20mm | |||||
Side Plate Thickness | 10mm | |||||
ISO Struck Volume m³ | 0.199 | 0.220 | ||||
ISO Heaped Volume m³ | 0.284 | 0.304 | 0.314 | 0.323 | 0.329 | 0.338 |
Add-on Options | Bolt-on edges (1,2 or 3), Centre Pin Teeth, Valves | |||||
Machine Suitability | Skid Steer Loaders, ROC 678KG+ |
High Volume | 1727 | 1800 | 1880 | 2000 | 2040 | 2130 |
---|---|---|---|---|---|---|
Bucket Cutting Width | 1727mm | 1880mm | 2000mm | 2040mm | 2130mmm | |
Weight | 477kg | 503kg | 522kg | 529kg | 544kg | |
Floor Thickness | 20mm | |||||
Side Plate Thickness | ||||||
ISO Struck Volume m³ | 0.264 | 0.288 | 0.306 | 0.312 | 0.326 | |
ISO Heaped Volume m³ | 0.384 | 0.400 | 0.418 | 0.445 | 0.454 | 0.474 |
High Volume Load Guard | Standard | Standard | Standard | Standard | Standard | Standard |
Add-on Options | Bolt-on edges (1,2 or 3), Centre Pin Teeth, Valves | |||||
Machine Suitability | Skid Steer Loaders, ROC 678KG+ |
