Monitoring and data logging for anchoring applications.

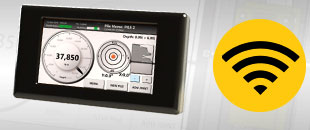

Torque Monitoring System
specssee it in action

Torque Spool - Screw Pile Torque Measuring System

Utilising the same technology as the Torque Hub, the Torque Spool screw pile measuring system delivers over 99% accurate torque readings. Data is sent over a robust 2.4 GHz RF FHSS signal to a smartphone via the TorqApp. The Torque Spool measures not only torque, but also inclination. This pile torque monitoring and data logging device is mounted between the output shaft and drive tool. To suit MD, UD and XD anchor drives (110,000 Nm to 500,000 Nm).

Installation Torque Reporting

Reports can be exportable directly from your smart device via email using a smartphone with its’ hotspot enabled via the TorqApp.

The TorqApp is FREE to download from either the Apple App Store or Google Play.

Various models available - Digga Australia

Available models

Torque Spools are available for MD, UD and XD Anchor Drives (110,000 Nm to 500,000 Nm).

Torque Spool - Digga Australia

More than just torque

Digga's Torque Spool provides you with a 99%+ accurate torque measurement alignment indicator and data logging proven solution.

Simple installation - Digga Australia

Simple installation

Mounts between the output shaft and drive tool.

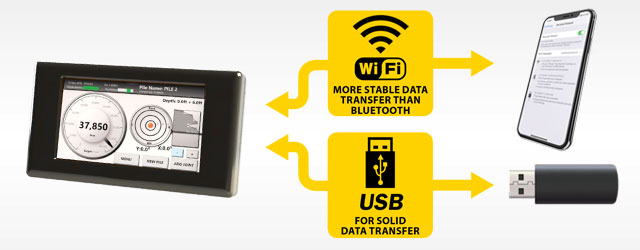

Easy export options - Digga Australia

Export data logging records

Record torque, pile depth, angle, date, and time with additional user-defined export field options available. Reports are exported as both bare data (.dat file – open in Excel), and as a PDF line chart.


Type TQSP-150K TQSP-250K TQSP-375K
Torque Rating 203,373Nm 338,954Nm 508,431Nm
"A" 229mm 248mm 260mm
"B" 356mm 445mm 603mm
"C" 305mm 395mm 552.5mm
"D" 31.8mm 35mm 38.1mm
"Y" 25.4mm 30mm 28.6mm
"X" 12 Holes 12 Holes 16 Holes
Weight 91kg 161kg 286kg
Specifications
Rated Output (R.O.) 2 mV/V nominal
Nonlinearity 0.1% of R.O.
Hysteresis 0.1% of R.O.
Nonrepeatability 0.05% of R.O.
Zero Balance 0.1% of R.O.
Compensated Temp. Range 16° to 71°C
Safe Temp. Range -40° to 50°C
Temp. Effect on Output 0.005% of Load/°C
Temp. Effect on Zero 0.005% of R.O./°C
Terminal Resistance 350 ohms nominal
Excitation Voltage 5 VDC
Safe Overload 150% of R.O.
Type Recommended Bolts/Nuts - for Torq Spools
TQSP-150K 24 ea - 1"-8 UNC x 5" B7 w/ 48 ea - 1"-8 UNC 2H Nuts
TQSP-250K 24 ea - M30-3.4 x 150mm Class 12.9 w/ 48 ea - M30-3.5 Class 12 Nuts
TQSP-375K 32 ea - 1-1/8" - 8 UN x 6" B7 w/ 64 ea - 1-1/8" - 8 UN 2H Nuts
