Pallet Fork Multifit - Digga Australia

specs see it in action

Auger drives for 20-28 tonne excavators

Digga’s series of premium auger drives designed for 20-28 tonne excavators form a comprehensive portfolio for foundation boring, post hole drilling, horizontal boring & utility markets. Our Halo alignment system is now included in all PD25-PD50 auger drives and are manufactured right here in Australia, specifically to endure the diverse world-wide landscape.

The 'PD' (Premium Drive) range of drilling drives has been the workhorse of the industry - With innovative ground-breaking design features that keep it ahead of the game; such as the development of the Digga/Danfoss Bell motor, which was specifically designed for Digga attachments, utilising DANFOSS Geroler technology, significantly reducing the weight, and overall length of the auger drives.

Learn about auger drives

Pair your drive to suit your machine type and achieve optimum performance, find out how to avoid costly repairs, and how the auger drive has technologically developed over the years.

Compact & powerful

Digga’s range of drilling drives was developed for the professional driller - utilising Geroler technology by Danfoss, the drives design significantly reduces weight whilst delivering outstanding performance.

Industry leading performance

By utilising the Danfoss Bell motor, the auger drive will accept 25kW of power, with a max pressure of 240bar (at 60lpm), delivering exceptional power-to-speed ratio when coupled with the industry leading Digga planetary gearbox.

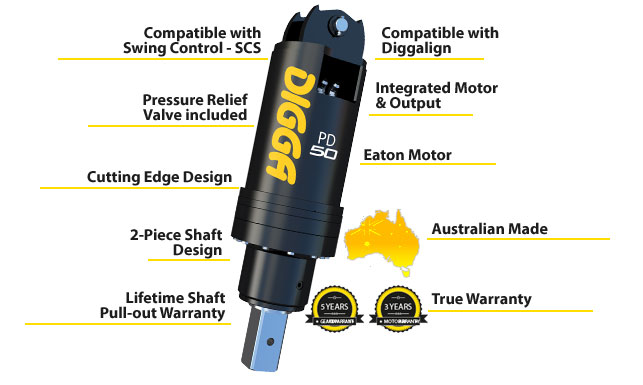

Advanced design

The Digga gearbox utilises a two-piece shaft design, the shaft is a separate component to the planetary carrier, isolating the planetary gears from the pushing, pulling, and bending forces generated by the host machine.

Precision accuracy

Now included in all PD25-PD50 Auger Drives, the new innovative Halo alignment system ensures holes are drilled plumb and reduces the need for in-hole angle adjustments. The highly visible LED indicator wraps around the Auger drive and will shine green when straight, allowing you to never take your eyes off the job to realign your auger.

Australian made quality

Digga drive units are made right here in Australia from quality materials. Digga is a proud Australian manufacturer committed to keeping jobs in the country.

Specification PD25 PD30 PD40 PD50
Rec Flow Range 120-230lpm 120-230lpm 120-230lpm 120-230lpm
Max Torque 26,267Nm 30,543Nm 33,041Nm 38,420Nm
Motor 6K Geroler 6K Geroler 6K Geroler 6K Geroler
Pressure Valve Fitted Included Included Included Included
Energy Control Valve Optional Optional Optional Optional
Case Drain Required No No No No
Max Pressure Do not exceed 240bar @ 130lpm Do not exceed 240bar @ 130lpm Do not exceed 240bar @ 130lpm Do not exceed 240bar @ 130lpm
Max Flow Do not exceed 230lpm @ 130bar Do not exceed 230lpm @ 130bar Do not exceed 230lpm @ 130bar Do not exceed 230lpm @ 130bar
Max Power Do not exceed 50Kw (67 hp) Do not exceed 50Kw (67 hp) Do not exceed 50Kw (67 hp) Do not exceed 50Kw (67 hp)
Overall Length 1152mm 1152mm 1152mm 1152mm
Diameter 355mm 355mm 355mm 355mm
Weight (no frame/hitch) 300kg 300kg 300kg 300kg
Std Output Shaft 100mm Square 100mm Square 100mm Square 100mm Square
Swing Control Optional Optional Optional Optional
Diggalign Optional Optional Optional Optional
Halo Included Included Included Included
Rec Auger 8 / 10 & 11 Series 8 / 10 & 11 Series 8 / 10 & 11 Series 8 / 10 & 11 Series
Max Auger Dia Clay/Shale 1200mm 1200mm 1500 1500
